Universal Hot Air Oven

Universal Hot Air Oven
Universal Hot Air Oven
Send Inquiry
Product Code : BL-500
Brand Name : BYANLAB
Product Description

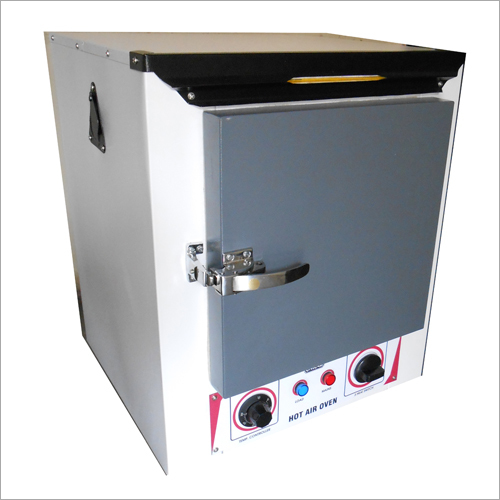

HOT AIR OVENS (Memmert type)  (Three side heating elements)

Standard double wall fabrication. Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet.  Exterior fabricated  out of thick mild steel sheet duly finished in stove enamel off-white  paint  or paste mat finish colour combinations

The gap between the walls is filled with-special grade glass-wool for heat insulation.  Inner chamber is ribbed for placing shelves at convenient levels.

Provided  with two or three removable shelves.  Special  elegant door closing device has been provided. Nichrome wire heating elements -provided on three sides attain quick and uniform heating in range of 50oC to 250oC + 1oC controlled by capillary type thermostat.

L-shaped thermometer is built-in type.  Control panel is provided with selector switch of high or low rates of power, thermostate control knob and indicators for mains & thermostat.

Supplied with cord and plug.  The equipment is suitable to operate on 220 V AC 50 Hz single phase.

Chamber size in mms/inches)

No. of shelves

300 x 300 x 300   (12" x 12" x 12" )

2

275 x 400 x 275   (11" x 16" x 11")

2

350 x 350 x 350   (14" x 14" x 14")

2

400 x 400 x 400   (16" x 16" x 16")

2

450 x 450 x 450   (18" x 18" x 18")

2

Technical Specifications & Ordering Informations

THERMOSTATIC MODEL

Inner Size (WxDxH)

355mmx355mmx355mm

 455mmx455mmx455mm

Capacity

45 L

95 L

224 L

336 L

Heat Load

0.75 KW

1.50 KW

2.25 KW

2.25 KW

No. Of Shelves

2

2

2

3

Temperature Range

50°C - 250°C+/-2°C

Insulation

Mineral Wool

Safety Device

Thermostat

Type

Forced Convection System

Temperature Controller

Digital Temperature Controller Cum Indicator

Electrical Supply

220/230V AC, 50/60H


DIGITAL MODEL

Inner Size (WxDxH)

355mmx355mmx355mm

455mmx455mmx455mm

Capacity

45 L

95 L

224 L

336 L

Heat Load

0.75 KW

1.50 KW

2.25 KW

2.25 KW

No. Of Shelves

2

2

2

3

Temperature Range

50°C - 200°C+/-2°C

Insulation

Mineral Wool

Safety Device

Thermostat

Temperature Controller

Thermostatic

Temperature Display

By L-Shaped Glass Thermometer

Electrical Supply

220/230V AC, 50/60Hz
