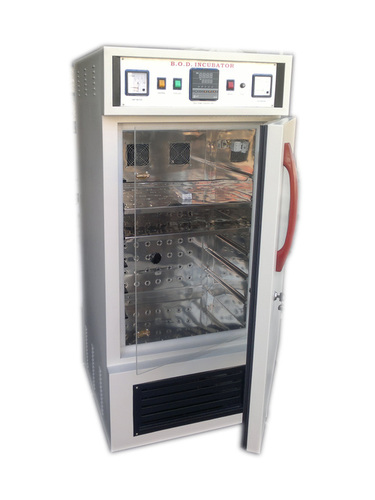

Make Cooling BOD Incubator is designed for low temperature incubation and routine determination of Bio-Chemical Oxygen Demand (B.O.D.).
Double wall construction. Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet with self supports for wide range of shelf spacing.
Supplied with two/three removable perforated shelves.
Exterior made out of SS 304 / Mild Steel sheet duly finished with powder coating
Outer double wall door is provided with magnetic gasket and lock & key arrangement. Inner door made out of clear acrylic sheet allowing inspection of material in the chamber without disturbing the chamber temperature.
Door operated inner illumination has been provided. The gap between walls of equipment is filled with glass wool for temp. insulation
The cabinet is mounted on castors
Temperature is controlled by a sensitive digitally temp controller from 5 deg C to 60 deg C + 1 deg C
For lower temp. working a standard cooling unit with a sealed compressor with protective devices has been provided below the chamber for safe and efficient working. Heating arrangement has been made within the chamber for higher temp working.
Inner air circulating system may be provided to achieve uniform temperature in the whole chamber. A control panel is provided with various indicators, on off switch.
Our BOD Incubator is supplied with cord and plug etc. equipment is workable on 220 V AC 50 Hz 1/3 phase
